1Introduction
This manual explains the installation, configuration and usage of the payment module for xt:Commerce and Concardis PayEngine. It is important that you strictly follow the described steps. Only by doing so, a secure usage in compliance with all security regulations can be guaranteed.
Before beginning with the installation, please make sure that you are in possession of all necessary data:
- PSPID & Password. You receive these credentials from Concardis PayEngine after conclusion of contract. Our support staff is happy to help you acquiring a Concardis PayEngine contract if you do not yet have one.
- xt:Commerce payment module from sellxed.com/shop
- FTP access to your server
- Login credentials for your shop
Note that you must use at least PHP version 5.6 for our plugins. PHP 8 or higher is currently not supported.
1.1Procedure of the Installation
- Configuration of the administration interface of Concardis PayEngine.
- Upload of the module
- Configuration of the basic settings of the payment module
- Configuration of the payment methods
- Carrying out a test purchase by means of the attached test data at the end of this document
- If the test was successful, copy all data from your test account into the Concardis PayEngine live account.
Our payment plugins should have per default the correct settings for most of our customers' preferences. That means once you have entered the required credentials in the plugin configuration to connect your account to your website, the plugin should be fully operational. Should you be willing to receive detailed information on a setting you do not know, you may contact our support team who will be able to assist you further.
Our support team is at your disposal during regular business hours at: http://www.sellxed.com/support. Furthermore, you have the option of ordering our installation service. We will make sure the plugin is installed correctly in your shop: http://www.sellxed.com/shop/de/integration-und-installation.html
In order to test the module, any kind of directory protection or IP blocking on your server must be deactivated. This is crucial as otherwise the payment feedback of Concardis PayEngine might not get through to the shop.
1.2System Requirements
In general, the plugin has the same system requirements as xt:Commerce. Below you can find the most important requirements of the plugin:- PHP Version: 5.4.x or higher
- OpenSSL: Current version with support for TLS 1.2 or higher.
- fsockopen: The PHP function fsockopen must be enabled. The plugin must be able to connect to external systems over the Internet.
- PHP Functions: All common PHP functions must be enabled.
2Configuration Concardis PayEngine - Backend
For the configuration, log into the Concardis PayEngine backend:
- Test Environment: https://secure.payengine.de/ncol/test/backoffice
- Live Environment: https://secure.payengine.de/ncol/prod/backoffice
The settings carried out on the following pages are a precondition for the configuration of the main module.
The configuration of the settings is done under Configuration > Technical Information. In the following chapter the chapter titles correspond to the tabs in the back office of Concardis PayEngine. For some parts screenshots will be added for a more precise illustration. Should a specific setting not be mentioned then it has no importance for the configuration of the payment module and can be ignored by you as such.
2.1Tab: Global Transaction Parameters
Under the tab Global Transaction Parameters you define the basic settings for the processing of transactions.
2.1.1Default operation code and default data capture procedure
We recommend choosing Sale and "Automatic data capture by our system at the end of the day". All incoming payments will be directly processed and debited. If you are using transaction management and deferred capturing we strongly advise to use these settings. In case you have saved different settings in the module, then the module's settings will overwrite those of the Concardis PayEngine.
2.1.2Payment Retry
We recommend entering 10.
2.1.3Processing for Individual Transactions
We recommend the option "Online but switch to offline when the online acquiring system is unavailable"".
2.2Tab: Global Security Parameters
Here you define the security parameters for the interaction between your shop and the gateway of Concardis PayEngine.
2.2.1Hashing Method
The sellxed payment modules support all hashing methods. In order for the module to function, it is crucial that the settings saved with Concardis PayEngine correspond to those made in the backend of your shop.
In order to guarantee a smooth processing of payments, we recommend the following hashing methods:
- Each parameter, followed by the pass phrase. It may be that this parameter is not visible in your shop. In this case it is transmitted automatically.
- Hash Algorithm = SHA 512
- Character Encoding = UTF-8
These settings must be identical to the settings in the main module (cf. Configuration of the main module). Please note that the character encoding in our modules is set to UTF-8 per default and cannot be changed.
2.3Tab: Payment Page
The checkbox under Cancel Button should be ticked. The field under Back Button Redirection can be left empty.
2.4Tab: Data and Origin Verification
The tab Data and Origin Verification defines security elements concerning the transmission of data and the loading of the payment page.
2.4.1Checks for e-commerce & Alias Gateway
The first box under "URL of the merchant page" can remain empty.
The box "SHA-IN pass phrase" is a security element of the payment verifying its authenticity. Therefore it is important that you use the same pass phrase in the back end and in the shop.
Please note that only ASCII characters may be used for SHA pass phrases. Please use our SHA pass phrase generator so that you do not enter invalid characters.
2.4.2Checks for Concardis PayEngine DirectLink and Concardis PayEngine Batch (Automatic)
DirectLink allows you to use the Hidden Authorisation (Alias Gateway) as well as the direct debiting of transactions within your shop. If you have activated DirectLInk in your account and wish to use this feature, enter the same SHA-IN pass phrase in the box "SHA-IN pass phrase" as above.
Further information on the configuration of DirectLink can be found under Configuration Hidden Authorisation.
2.5Tab: Transaction Feedback
In the tab Transaction Feedback the response of Concardis PayEngine to the shop is controlled.
2.5.1HTTP Redirection in the Browser
The parameters in the transaction feedback determine the processing in the shop after payment has been completed. However, the four fields for "HTTP Redirection in the Browser" can remain empty because they will be configured through the settings of our module.
Un-tick the option "I would like Concardis PayEngine to display a short text to the customer on the secure payment page if a redirection to my website is detected immediately after the payment process."

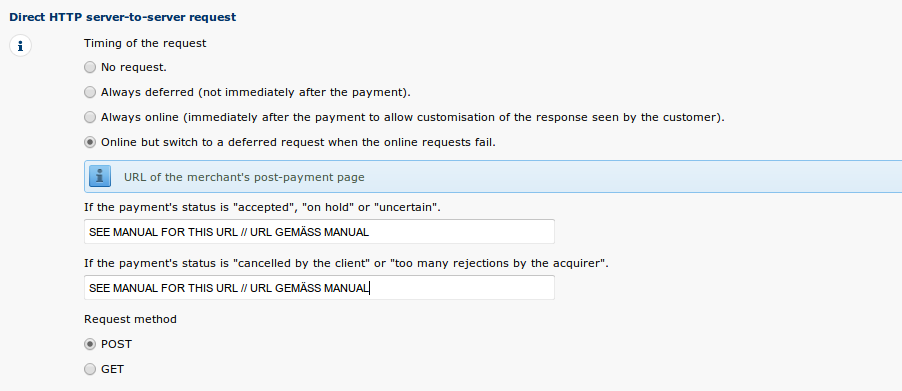

2.5.2Direct HTTP-Server-to-Server-Request
- The "Timing of the Request" must be set to Online but switch to a deferred request when the online requests fail. As "Request Method" you must select "POST".
- In the section General make sure that the Option: "I would like Concardis PayEngine to display a "processing" message to the customer during payment processing." is un-ticked too.
- Copy here the URL that is listed in the module backend under: Settings > Concardis PayEngine > Setup.
URL on which the merchant wishes to receive a deferred HTTP request, should the status of a transaction change offline.
For the Transaction Feedback please enter the URL that is generated in the main module. More information can be found under the section Transaction Feedback
Should you notice during the tests that orders are not registered in the shop and that no confirmation email is sent, this might be due to a failure of the transaction feedback. Make sure that your firewall is not blocking any request coming from Concardis PayEngine.
Concardis PayEngine sends the notification requests with a time out of 20 sec. Should your shop not respond to the HTTP Request within this time, a time out error will be sent. If you set the option to Online but switch to a deferred request when the online requests fail the request will be retrieved four times in ten minute intervals.
Please note that, depending on your Concardis PayEngine subscription, it is possible that the only option available is Always online (immediately after the payment to allow customization of the response seen by the customer). In this case, always select this option.

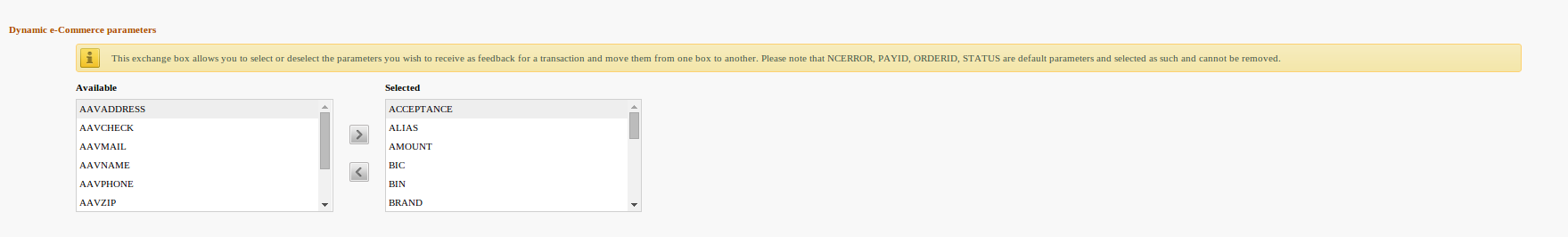

2.5.3Dynamic e-Commerce Parameters
With this option you control which parameters are sent in the response from Concardis PayEngine. In order for payments to effectively be evaluated in your shop, all necessary parameters must be sent. It is possible that you have other options available to select. Just make sure that you move every parameter from available to selected except for the following:
- PM
- CN
- SUBBRAND
- AAVADDRESS
- AAVCHECK
- AAVMAIL
- AAVNAME
- AAVPHONE
- AAVZIP
![](https://www.customweb.com/concardis/cc_fr/usd/software/manual/image/1302/en/manual/images/Interfaces/Ogone/dynamic_ecommerce_parameter.png)
2.5.4Dynamic Parameters
With this option you control which parameters are sent in the response from Concardis PayEngine. In order for payments to effectively be evaluated in your shop, all parameters must be sent. It is possible that you have other options available to select. Just make sure that you move every parameters from available to selected.
![](https://www.customweb.com/concardis/cc_fr/usd/software/manual/image/1302/en/manual/images/Interfaces/Ogone/dynamic_parameter.png)
2.5.5Security for Request Parameters
The box "SHA-OUT pass phrase" is an additional safety mechanism for payments. Here too must the entered pass phrase be identical to the one in your shop. However, please make sure that your SHA-OUT pass phrase differs from the SHA-IN pass phrase. .
Please note that only ASCII characters may be used for SHA pass phrases. Please use our SHA pass phrase generator so that you do not enter invalid characters.
2.5.6HTTP Request for Status Changes
You have the option to be informed about status changes by Concardis PayEngine directly. This feature is especially useful when a payment has an uncertain status because the acquirer system could not be reached. The payment status will be updated automatically. Furthermore this feature allows you to capture payments inside Concardis PayEngine and have synchronize them with your shop
In order to use this feature you will have to select the option For each offline status change (payment, cancellation, etc.).. Afterwards just copy the URL into the field that is displayed in the Setup of your Main configuration: Settings > Concardis PayEngine > Setup.
Enter the URL shown there into the field 'URL on which the merchant wishes to receive a deferred HTTP request, should the status of a transaction change offline.'
2.5.7Dynamic Parameters
Move all parameters from available to selected.

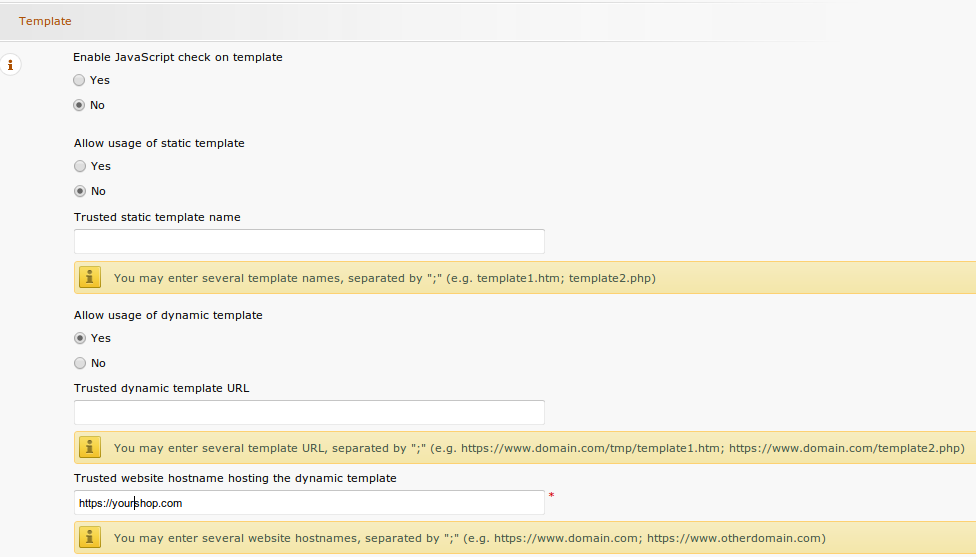

2.6(Dynamic-)Template
You can now find the option template via Configuration > Template. The Dynamic Template enables you to design the payment mask for the credit card data so it matches your web shop. Should the field for the dynamic template not be visible, please contact Concardis PayEngine. It may be that you have to activate additional options in your account.
For the usage of the dynamic template, please save the following settings:
- Enable JavaScript on template: 'No'
- Our modules do not allow "usage of static template". So click 'No'
- Allow usage of dynamic template: 'Yes'
- In case you are using the dynamic template, enter the host name, i.e. https://Your-Shop.com in the lower box. The upper one must remain empty.
Please note that you require an SSL certificate for the usage of the dynamic template. Otherwise the CSS-Resources will not be reloaded in certain browsers which might lead to layout issues.
The activation of the dynamic template in the shop is explained here.
2.7Hidden Authorisation, Ajax Authorization (FlexCheckout - Hosted Tokenization Page), External Checkout & Alias Manager
2.7.1Preconditions
For the usage of the Hidden Authorization, Ajax Authorization (FlexCheckout), Alias Manager or External Checkout during the payment processing, certain adjustments are necessary in the backend of Concardis PayEngine. Please check first if the options are activated in your account under Account > Your Options.
If an option is not available please contact Concardis PayEngine.
Options and their Meanings:
- For the usage of the Hidden Authorization you require the option OnePageCheckout (OPC).
- For the usage of the Ajax Authorization (FlexCheckout) you require the option OnePageCheckout (OPC) and DirectLink (DPR).
- If you additionally want to use the Alias Manager, you also need the option Alias Manager (RECX).
In case these options are not be available, please contact Concardis PayEngine directly.
2.7.2Setting Up an API-User
If you want to use the features of the transaction management or the hidden authorization (Alias Gateway) you will need to set up an API user as described herafter:
Go to Configuration > User Administration and click on 'New User'. Choose a User ID and insert a user name of your choice and your e-mail address. Select Administrator without user manager as a profile. It is furthermore important that you select the option Special user for API (no access to the administration). If you do not see this option, you will need to let Concardis PayEngine activate the option DirectLink for your account.
The User ID and the API-user password may only contain letters and numbers as wel as special characters. The following special characters are not allowed: & (Ampersand), " (double quotes), ' (single quotes)
Note down the access data. They will have to be inserted in the respective place in the configuration of the main module.

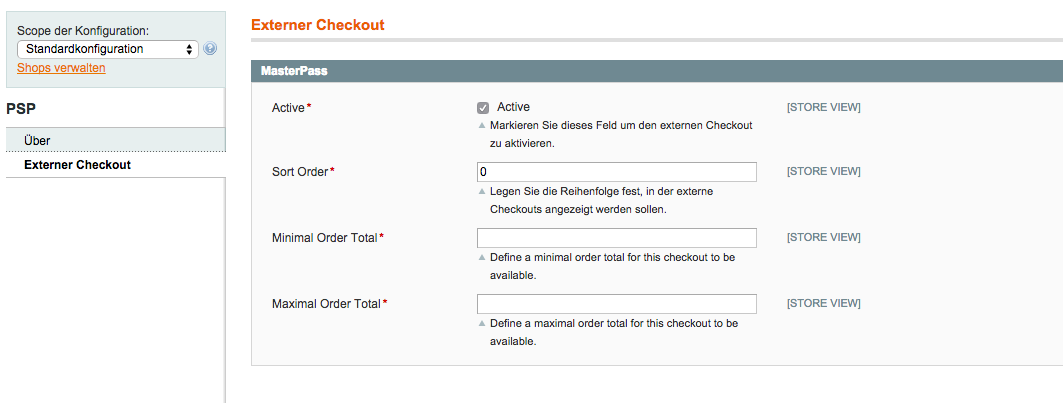

2.7.3Usage of External Checkouts
For the usage of external checkouts there are additional options required. External checkouts, such as MasterPass are payment methods, which offer the possibility to transfer addresses automatically.
The usage of the external checkouts asks for the option Direct Link and for the activation of payment method in your account.
For the performance of the payment method, you have to make sure that under Technical Information > Transactionfeedback in the section Direct Link all parameters selected are shifted
3Module Installation and Update in the xt:Commerce Shop
3.1Installation
At this time you should already be in possession of the module. Should this not be the case, you can download the necessary files in your customer account in the sellxed shop (Menu "My Downloads Downloads"). In order to install the module in your shop, please carry out the following steps:
- Download the plugin. The download can be found in your sellxed.com account under "My Downloads".
- Unzip the archive you have just downloaded.
- In the unzipped folder navigate to the folder "files"
- For some shops there are different versions of the plugin provided. If this is the case open the folder which corresponds to your shop version.
- Using your preferred FTP client upload entire content of this folder into the root directory of your shop. For some shops there is a specific folder containing the plugins. If that is the case upload the plugin into this folder. Make sure that the folders aren't replaced but merely merged.
- If you haven't yet done so, log back into your shop.
3.2Updates and Upgrades
You have direct and unlimited access to updates and upgrades during the duration of your support contract. In order to receive constant information about available updates we ask you to subscribe to our RSS feed that we publish for your module.
More information regarding the subscription of this RSS feed can be found under: http://www.sellxed.com/en/updates_upgrades.
We only recommend an update if something doesn't work in your shop, if you want to use new feature or if there is a necessary security update.
3.2.1Update Checklist
We ask you to strictly comply with the checklist below when doing an update:
- Always do a backup for your database and your files in your shop
- Use always a test system to test the update process.
- Wait until all the files are copied to the shop, clear the cache if there is one in your shop and then visit the configuration page of the main module so that the update process will be initialized.
Please test the update procedure first in your test shop. Our support team is able and willing to help you if you experience problems with the update process. However, if you decide to perform the update directly in your live shop there is the possibility of a downtime of the shop of more than two days depending on the availability of our support if you do not want to book our complementary support.
Depending on the version it could be that the database has to be migrated. We recommend you therefore, to perform the updates in times when the shop is not visited too frequently by your customers.
3.2.2Update Instructions
Please always read the update instruction. Those instructions can be found in the changelog. If there are no special remarks, you can proceed by just overwriting the files in your system.
4Module Configuration in the xt:Commerce Shop
The configuration consists of two steps. The first step is the configuration of the main module with all the basic settings (cf. Configuration of the Main Module). During the second step you can then carry out individual configurations for each payment method . This allows for full flexibility and perfect adaptation to your processes.
Please create a backup of the main directory of your shop. In case of problems you will then always be able to return your shop to its original state.
We furthermore recommend testing the integration on a test system. Complications may arise with third party modules installed by you. In case of questions, our support is gladly at your disposal.
4.1Base Module Configuration
The settings for the Base Module can be found in "Content > Plugin > deinstalled plugins > Concardis PayEngine Base Module" . To install the module, click 'install'. A new window should open now. Next, cklick F5 in your browser in order to reload all Java Script data of the modules and then return to the location of the installed plugins.
The settings of the module can be opened by clicking on the pen. Enter the options that you set in the administration surface of Concardis PayEngine. If an option is unclear, a click on the question mark will show more information. The central settings will be explained.
4.1.1Sending e-Mails for status updates
Mark every status that you want to trigger an e-Mail to the customer if his order was set to this status.
4.2Defining the URL for the Transaction Feedback
To ensure correct payment processing in your shop, at least one Feedback URL has to be provided in the Concardis PayEngine configuration. The URL to be entered can be found in your xt:Commerce Shop under the menu item Settings > Concardis PayEngine > Setup .
4.3Payment Method Configuration
After the Basic Module was configured successfully, the payment method settings for your shop can be found under Settings >. Every method is listed seperately. Activate the desired payment methods by selecting them and clicking Activate Selection.
With a click on the pen, a new window for the settings will open. Most settings are self-explanatory. A click on the question mark shows additional information.
4.3.1Choosing the Authorization Method
You can choose between several display options for the authorization of card payments. The option Authorization Method determines, which payment methods you would like to process.
For further information on the differen authorization methods, visit our sellxed Website.
4.3.2Payment Form Position
If you have the corresponding package of Concardis PayEngine, the payment information can be entered directly in your shop. The setting Page for Payment Form adjusts the position of the payment form
Please bear in mind that additional options with Concardis PayEngine have to be enabled in order to use some of the payment processing methods.
Some authorization methods might not be available for every payment method.
4.3.3Capturing Orders Directly
The option "Capturing" determines wether payments should be captured directly or if they should be authorized before. If you only want to authorize as a first step, ensure that the payments are issued later.
Depending on your Acquiring Contract, a reservation is guaranteed for a limited time only. If you are not capturing within this time, the authorization might not be guaranteed. Further information on the process of capturing is provided below.
The settings in the payment method module might overwrite your settings in the Concardis PayEngine backend.
4.3.4Uncertain Status
You can mark orders without a 3D Secure Verification or other security mechanism failures. This allows you to examine the order manually before the shipment.
4.3.5Setting the Order Status
You can determine which status the order should have for every payment method. This refers to the initial order status.
4.4Direct Capturing of Transactions
The option "Capture" allows you to specify if you wish to debit payments directly or if you first wish to authorise them and then debit the payment at a later point.
Depending on your acquiring contract, a reservation is only guaranteed for a specific period of time. Should you fail to debit the payment within that period, the authorisation may therefore no longer be guaranteed. Further information on this process can be found below.
It may be that settings saved in the payment modules overwrite settings saved in Concardis PayEngine.
4.5Uncertain Status
You can specifically label orders for which the money is not guaranteed to be received. This allows you to manually control the order before shipment.
4.5.1Setting the order state
For each payment method you may select in which state the order should be set to depending on the booking state. This is the initial state of the order.
4.6Stock Management in xt:Commerce 4 / 5
Since the 19.05.2017 we changed the way we handle the stock implementation in xt:Commerce 4 / 5. Products will now automatically be restocked when the status of the order is changed to failed. The status of the order is automatically changed to failed if the customer does click on the cancel button on the payment page. However if he uses the back button in the browser we can not determine the status of the order. In this case you have to manually cancel the order to restock the items.
Please note the stock will automatically be increased if you switch an order into the failed state.
4.7Optional: Validation
Note: It can be that this option is not visible in your module. In this case just ignore this section.
With the option 'Validation' you can define the moment when the payment method should be made visible to the customer during the checkout process. This setting is relevant for modules where the usage depends on the customer's compliance with specific preconditions. For example, if a solvency check has to be carried out or if the payment method is only available in certain countries. In order for the credit check or address validation to also work with European characters, the charset of the "Blowfish mode" must be set to "UTF-8" for certain PSP settings.
You have the choice between these options:
- Validation before the selection of the payment method: A validation verification is carried out before the customer selects the payment method. If the customer does not fulfill the requirements, the payment method is not displayed
- Validation after selection of the payment method: The verification of the compliance occurs after the selection of the payment method and before the confirmation of the order
- During the authorisation: The validation verification is carried out by Concardis PayEngine during the authorisation process. The payment method is displayed in any case
4.7.1Usage of several independent xt:Commerce shops
In case you wish to connect several independent shops to one contract with one contract with Concardis PayEngine, you require a sellxed payment module for each shop as well as the corresponding multi-shop module which you will find directly by the payment module.
- Extract the multi-shop module and open the file "router.php"
- Enter a shop ID of your choice in the box "Shop ID" within the main configuration of the module (e.g. shop_a and shop_b)
- Enter the following line into the corresponding place within
the file router.php of the multi-shop module (for each shop shop_a and
shop_b):
$redirect['shop_a'] = '/de/payenginecw?controller=process&action=notify'; - Enter the URL below (instead of the URL mentioned above) under the point "Feedbacks" in the backend of Concardis PayEngine: http[s]://yourshop.com/router.php
- Copy the file router.php into the main directory of your shop
5Settings / Configuration of Payment Methods
5.1General Information About the Payment Methods
The plugin contains the most common payment methods. In case a desired payment method is not included per default, please contact us directly.
In order to be able to use a payment method, it must be activated in your account with Concardis PayEngine as well as in your shop. Information about the configuration of the payment methods can be found further above.
Below you can find important information for specific payment methods that deviate from the standard process.
5.2Information on Payment Status
For each payment method you can define an initial payment status (status for authorized payments etc.). You hereby define the payment status for each state depending on the processing type of the order (captured, authorized, etc.). It's the initial status which the order assumes. Depending on the mutation carried out by you, the status can change.
Never set the status to Pending Concardis PayEngine or any similar pending status which is implemented by the module.
5.2.1Order status "pending" / imminent payment (or similar)
Orders with the status 'pending Concardis PayEngine' are pending orders. Orders are set to that status if a customer is redirected in order to pay but hasn't returned successfully or the feedback hasn't reached your shop yet (Customer closed window on the payment page and didn't complete payment). Depending on the payment method these orders will automatically be transformed into cancelled orders and the inventory will be cleared (so long as the Cronjob is activated). How long this takes depends on the characteristics of the payment method and cannot be configured.
If you have a lot of pending orders it usually means that the notifications from your webserver to Concardis PayEngine are being blocked. In this case check the settings of your firewall and ask the Hoster to activate the IPs and User Agents of Concardis PayEngine.
5.2.2Order status "cancelled"
Orders with the status "cancelled" have either been set to that status automatically due to a timeout, as described above, or have been cancelled directly by the customer.
5.3Usage Hidden Authorisation / Alias Gateway
You have the possibility of processing credit cards without redirection to the payment page of Concardis PayEngine.
In order to be able to use this feature, you must first carry out the steps listed under Hidden Authorisation / Alias Gateway and create an API-User.
You can then activate the authorisation method 'Hidden Authorisation' for the payment methods of your choice. This procedure requires you as a merchant to fulfill the PCI-SAQ-A-EP. At no time is any credit card data saved on your server. Contact your Acquirer for more information about the SAQ and the requirements.
5.4Credit Card
For the integration you have the choice between the pre-selection in the shop; i.e. the customer chooses the card type already in the shop; or a generic integration in which case the customer only sees the option 'credit card' as a payment method and then chooses the card type on the payment page Concardis PayEngine.
We recommend choosing the option pre-selection. This allows you to configure individual settings for each payment method and add payment fees to the various methods.
5.5PayPal
You can process PayPal directly via Concardis PayEngine. In order to do so, however, some adjustments to your PayPal account are required. Please carry out the following steps:
- Activate the payment module in your shop
- Make sure that the payment method is activated in your Concardis PayEngine account
- The API adjustments must be carried out in your PayPal account. The various steps are explained in the "PayPal Express Checkout Integration Guide". This document can be found in your PSP account under: Support > Integration and User Guides > Technical Guides > Concardis PayEngine PayPal Express Checkout Integration Guide .
5.6MasterPass Integration: What to keep in mind
If you integrate MasterPass as a payment method in your shop, you have two integration options: External and Standard Checkout. When using External Checkout, the customer does not have to provide address data during checkout. The customer only needs a MasterPass account and the data will be transmitted by MasterPass. In order to use this option as a merchant, you have to activate this payment method with Concardis PayEngine.
Please keep in mind, that using additional functions such as address transmission through MasterPass, may require the activation of the respective options through Concardis PayEngine aktiviert.
In order to use MasterPass in compliance with the MasterCard guidelines, please read the following information carefully before using this payment method.
5.6.1Integration Possibilities for MasterPass
MasterPass can be integrated as a normal payment method with redirection to Concardis PayEngine or as an external checkout.
5.6.1.1MasterPass as a Payment Method
If you like to integrate MasterPass as a normal payment method, activate the payment method as usual (seeConfiguration of the payment method). In this scenario the customer will first be redirected to MasterPass and then to the wallet of the issuer.
5.6.1.2MasterPass as External Checkout
If you integrate MasterPass as an external Chekout, you can minimize the steps towards the payment radically. The adress transfer and the creation of the account is processed via MasterPass. If you activate the external checkout, there appears a button in the basket with which you can jump after the login directly to the last step of the order confirmation. The creation of the account happens in the background.
For the activation of the external checkout go to Settings > Concardis PayEngine . There you'll find all settings for the external checkout:
MasterPass as external checkout is not for all cases available. If this point in the manual doesn't appear, please make sure to contact us.

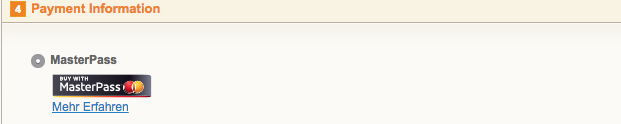

5.6.2Checkout: MasterPass Learn More Button
When using MasterPass as a payment method for standard checkout, it is mandatory to link to the MasterPass Learn More Page. In order to do this, navigate to Payment Method Configuration. Paste the link for the Learn More Page into the field 'Description' for the respective languages. The field 'Learn More' will now be displayed when choosing a payment method.
We have already collected the most important links for you. You only have to copy and paste the links into the description field:
- German:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/de/DE/" target="_blank">Mehr Erfahren </a>
- French:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/fr/FR/" target="_blank">apprendre plus </a>
- English: <a href="https://www.mastercard.com/mc_us/wallet/learnmore/en/DE/" target="_blank">Learn More </a>
- Spanish:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/en/ES/" target="_blank">aprender más </a>
- Italian:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/it/IT/" target="_blank">saperne di più </a>
- Dutch:<a href="https://www.mastercard.com/mc_us/wallet/learnmore/nl/NL/" target="_blank">Leer Meer </a>
![](https://www.customweb.com/concardis/cc_fr/usd/software/manual/image/1302/en/manual/images/MasterPass/description_learnmore.png)
Links for additional languages can be found in this document: https://developer.mastercard.com/...
5.6.3Additional information
General and additional information on using the MasterPass trademark and logo in your webshop are available in the official MasterPass Mechant Branding Requirement Document. which you can access here: https://developer.mastercard.com/...
5.7Usage of the Ajax Authorization (FlexCheckout)
You have the possibility of processing credit cards without redirection to the payment page of Concardis PayEngine.
In order to be able to use this feature, you must first carry out the steps listed under Hidden Authorisation, FlexCheckout (Hosted Tokenization Page), External Checkout und Alias Manager and create an API-User.
You can then activate the authorisation method 'Ajax Authorization (FlexCheckout)' for the payment methods of your choice. At no time is any credit card data saved on your server.
6The Module in Action
Below you will find an overview of the most important features in the daily usage of the Concardis PayEngine module.
6.1Order Transaction Information
In each order processed by our module, you can view all important information on the transaction. For instance, this feature allows you to match the orders to the transactions visible in the Concardis PayEngine backend.
To view this information, open the orders. At the bottom of the order you will find the paragraph Concardis PayEngine Transactions. This shows all details on all former actions related to this order. Click on the key in the column "Action" to see the transaction information (c.f. image "Transaction Information").

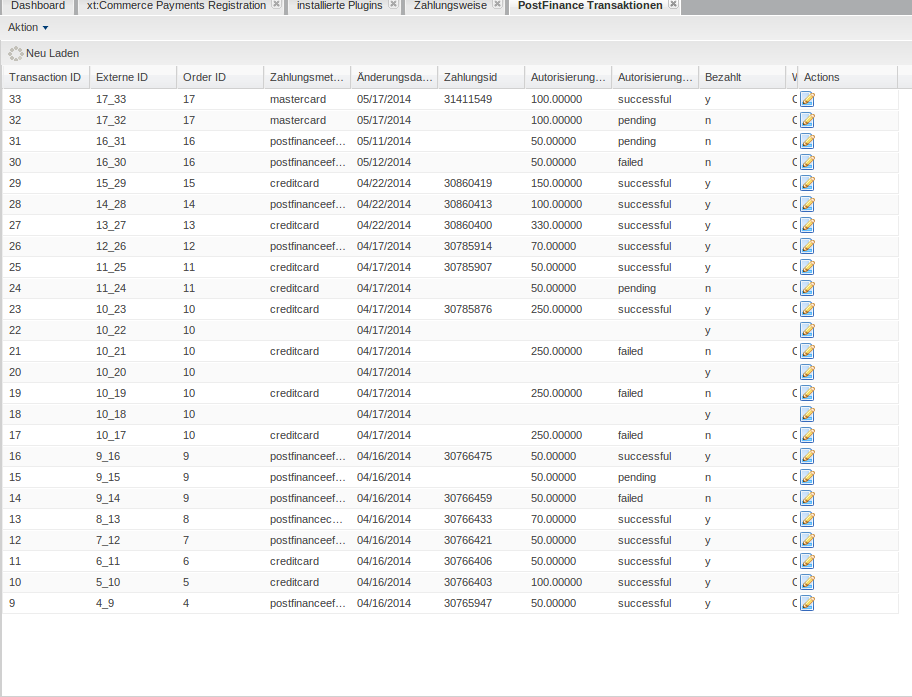

6.2Transaction Table
In addition to information on the order, the transaction table shows information on the transactions in your shop. Among other things, it allows you to match the Concardis PayEngine transaction number to the order in your shop.
6.3Initiating payments in the xt:Commerce backend
The xt:Commerce payment module allows you to initiate a payment directly from the shop, the so called Mail Order / Telephone Order (MOTO). This feature requires an additional module. After installing the plugin, you can set up four orders in the Concardis PayEngine administration surface. When opening the order now, you can add a transaction to this order by clicking on Add Moto Transaction on the bottom right. The transaction will be forwarded to Concardis PayEngine directly.
6.3.1Refunding Orders
In order to issue a refund, open the transaction information (c.f. above). This shows all information on the transaction. With a click on "Refund", an input mask for credit notes will open. By clicking Refund , the refund request is transmitted to Concardis PayEngine.
Executing a refund will not change the status of the order.
6.4Capturing / Cancelling Orders
The transaction management between Concardis PayEngine and your shop is not synchronised. When you register payments with Concardis PayEngine, the status in the shop is not adjusted and the order cannot be captured in the shop again.
6.4.1Capturing / Cancelling Orders
To capture orders, open the transaction information (c.f. above). This will show you all information on the transaction. With a click on "Capture" (top right), the order is forwarded to Concardis PayEngine. You do not have to log in to the Concardis PayEngine backend. You can enter the products you would like to capture in the input mask.
By clicking "Cancel" the transaction is cancelled and the reserved amount is cleared on the customer's card immediately.
6.5Using the Alias Manager / Token Solution
The Alias Manager feature allows you to securely save your customers' credit card data at Concardis PayEngine for future orders. You can enable this by activating the option "Alias Manager" in the configuration of the Payment Method. Now the customer can choose between already saved credit cards when ordering again, without having to enter all card information.
It is necessary to enable the respective option with Concardis PayEngine to use the Alias Manager. To do this, please contact the support team.
6.6Dynamic Template
We provide a standard skin for the usage of the dynamic template for all sellxed modules. You can activate the option by setting the option "Dynamic Template" to "Use Shop Template" in the main module. Please make sure that all settings specified under Template have been carried out in the backend of Concardis PayEngine.
The Dynamic Template allows you to load the Payment Page of Concardis PayEngine in the layout of your shop. The customer, therefore, does not notice that the customer has been forwarded to the website of Concardis PayEngine. The template dynamically adjusts to your shop template. This, furthermore, allows you to easily integrate Mobile Skins (cf. Screenshots).
In order for the Dynamic Template to work correctly with all browsers, you require an SSL certificate in your shop.
6.7Setting up Cron Job
To activate the time-controlled plug-in functions (e.g. Update Service, deleting pendant orders, etc.), follow the Concardis PayEngine instructions for the set up of Cron Job.
7Testing
Before switching from test to live mode it is important that you test the module extensively.
Do not forget to switch the operating mode from test to live after having successfully tested the module.
7.1Test Data
In the following section you can find the test data for the various payment methods:Card number 3750 0000 000 0007 Expiry Date 12/2020 CVC 1234 | American Express |
Card number 5399 9999 9999 9999 Expiry Date 12/2020 CVC 123 | Mastercard |
Card number 4111 1111 1111 1111 Expiry Date 12/2020 CVC 123 | VISA (Without 3-D Secure Check) |
Card number 4000 0000 0000 0002 Expiry Date 12/2020 CVC 123 | VISA (With 3-D Secure Check) |
Card number 3750 0000 000 0007 Expiry Date 12/2020 CVC 1234 | American Express |
Card number 5399 9999 9999 9999 Expiry Date 12/2020 CVC 123 | Mastercard |
Card number 4000 0000 0000 0002 Expiry Date 12/2020 CVC 123 | VISA (With 3-D Secure Check) |
Card number 4111 1111 1111 1111 Expiry Date 12/2020 CVC 123 | VISA (Without 3-D Secure Check) |
8Errors and their Solutions
You can find detailed information under http://www.sellxed.com/en/faq. Should you not be able to solve your problem with the provided information, please contact us directly under: http://www.sellxed.com/en/support
8.1The Referrer URL appears in my Analytics Tool
When a customer and the notification are redirected via Header Redirection, the Concardis PayEngine Referrer URL might appear in your Analytics Tool thus hiding the original traffic source. However, most Analytic Tools are able to minimize this problem.
In case you are using Google Analytics as reporting tool, this step by step guide may help you to exclude the URLs: under bullet point 4.
9Error Logging
The module will log different unexpected errors or information depending on the configured level. If there is any issue with the module, this log can help identify the cause.
9.1Log Levels
You can configure the log level in the Concardis PayEngine settings.
- Error: Logs unexpected errors only. (Default)
- Info: Logs extended information.
- Debug: Logs information helpful for debugging.
9.2Log Location
The log file is stored in the xt:Commerce log directory. Please make sure the path exists and it is writable by the webserver. (Default Path: {shopRootDirectory}/xtLogs/)
10Advanced Information
This section of the manual is for advanced usage of the module. The content is for advanced users with special requirements. Everything in this section is optional and not required for the daily usage of the module.
10.1Transaction Object
This section describes how to extract information from a transaction, if you need it for further processing. E.g. you require more information of the transaction for further processing an order in your ERP system.
The code snippets in this section assume your script resides in the root folder of the shop with the default shop folder structure.
$root_dir = dirname(__FILE__).'/'; define('_VALID_CALL','true'); define('_SRV_WEBROOT',$root_dir); include _SRV_WEBROOT.'conf/debug.php'; include _SRV_WEBROOT.'conf/config.php'; include _SRV_WEBROOT.'conf/database.php'; include _SRV_WEBROOT.'conf/paths.php'; include _SRV_WEBROOT._SRV_WEB_FRAMEWORK.'function_handler.php'; include _SRV_WEBROOT._SRV_WEB_FRAMEWORK.'database_handler.php';
require_once 'plugins/payenginecw/init.php'; require_once 'plugins/payenginecw/lib/PayEngineCw/Util.php';
$transactionById = PayEngineCw_Entity_Util::loadTransaction($transactionId); $transactionObject = $transactionById->getTransactionObject();
